A narrative review of current functional assessment of the upper esophageal sphincter

Rafael Melillo Laurino Neto^, Fernando A. M. Herbella^

Department of Surgery, Escola Paulista de Medicina, São Paulo, Brazil

Contributions: (I) Conception and design: Both authors; (II) Administrative support: Both authors; (III) Provision of study materials or patients: Both authors; (IV) Collection and assembly of data: Both authors; (V) Data analysis and interpretation: Both authors; (VI) Manuscript writing: Both authors; (VII) Final approval of manuscript: Both authors.

^ORCID: Rafael Melillo Laurino Neto, 0000-0001-6950-1792; Fernando A. M. Herbella, 0000-0003-3594-5744.

Correspondence to: Dr. Rafael Melillo Laurino Neto, MD. Department of Surgery, Escola Paulista de Medicina, Rua Dona Adma Jafet 50, cj 125, São Paulo, SP 01308-050, Brazil. Email: rmelillo@uol.com.br.

Abstract: Swallowing is a physiological process organized in a sequence of events grouped in extraesophageal and esophageal phase. Changes in the swallowing mechanism can be seen in many clinical situations. Difficulties in the study of the extraesophageal phase of this mechanism occur frequently due to the velocity of this moment, compared to the esophageal phase, as well as the structural characteristics of the upper esophageal sphincter (UES). The aim of this paper is to make a literature review on current functional assessment of the UES. The authors conducted a PubMed search of research published between August 2009 and December 2020, looking for publications related to the topic studied. All diagnostic methods (imaging and endoscopic), as well as conventional manometry, present technical difficulties for their performance and interpretation of results. The emergence of high-resolution manometry (HRM) brought a great advance in the diagnostic study of the pathophysiological phenomena that affect the UES, as well as the repercussion in this location of other esophageal disorders. Functional study of UES through HRM has allowed not only a better understanding of its functioning under normal and pathological conditions, but also an increased number of situations in which it can be applied.

Keywords: High-resolution manometry (HRM); esophageal motility; pharynx; upper esophageal sphincter (UES)

Received: 14 February 2021; Accepted: 30 March 2021; Published: 25 September 2022.

doi: 10.21037/aoe-21-17


Swallowing is a physiological process typically organized in a sequence of events, in which the upper esophageal sphincter (UES) constitutes an important anatomic and functional landmark. Different clinical conditions require the study of this mechanism in its diagnostic investigation. Historically, several diagnostic methods have tried to study this region with little success. The emergence of high-resolution manometry (HRM) allowed an advance in the study of this region and an increase in the diagnostic possibilities of the diseases related to UES.

The aim of this review is to update the concepts regarding the diagnosis of UES disorders. We present the following article in accordance with the Narrative Review reporting checklist (available at https://aoe.amegroups.com/article/view/10.21037/aoe-21-17/rc).


Information used to write this paper was collected from PubMed with the following keywords: “high-resolution manometry”, “esophageal motility”, “pharynx”, “upper esophageal sphincter” from August 2009 until December 2020. Only articles written in English performed on adult humans were selected for primary review. The references of the articles were manually reviewed for additional relevant papers.


UES: morphology and function

For a better understanding of the physiology of normal swallowing, this phenomenon is didactically divided into three phases: oral, pharyngeal and esophageal (1). The first two phases occur in less than 2 s while the third lasts between 10 and 15 s.

The oral phase of swallowing is under mostly voluntary muscle control and involves transit of a prepared bolus beyond the oral cavity. The pharyngeal phase of swallowing follows immediately thereafter. The superior, middle, and inferior pharyngeal constrictor muscles contract in peristaltic series, manipulating the ingested bolus downward. This contraction also facilitates transient relaxation of the cricopharyngeus, the dominant muscle within the UES, to allow bolus passage into the esophagus (1).

Anatomically, UES tends to span 2 to 4 cm in length and is composed beyond the muscle fibers by cartilage and aponeurotic tissue. These characteristics make the UES asymmetrical in its dimensions (axial and radial) and also unique in the fact that its fibers, unlike the distal digestive tract, are striated and present a quick motor response, hinder its formal evaluation (2).

Fundamentally, by contracting, the UES creates an obstacle between the pharynx and the esophagus, thus protecting the airways from the entry of food content and gastroesophageal refluxate (3).

UES: diseases

Swallowing mechanism can be altered by several anatomical and functional changes with different clinical repercussions. Abnormalities of the pharyngeal phase, and in particular of the UES, can be difficult to isolate due to this region’s functional complexity (4). These abnormalities can be didactically grouped into: structural, neurological, rheumatological, infectious and iatrogenic (Table 1).

Table 1

Potential underlying diagnoses of deglutitive abnormalities affecting the UES

Structural Neurological Rheumatologic Infectious Iatrogenic
Cricopharyngeal bar Stroke Polymyositis Candidiasis Radiation
Zenker’s diverticulum Encephalopathy Sarcoidosis Herpetic mucositis Surgery
Head and neck tumors Neurodegenerative disease Sjogren’s syndrome

UES, upper esophageal sphincter.

UES: when to evaluate

Many clinical scenarios, such as pharyngeal globus, aspiration risk or suspicion of supra-esophageal reflux disease (SERD), may require specific assessment of the UES. The most common symptomatic presentation that requires investigation is the differentiation of oropharyngeal dysphagia from esophageal dysphagia, which are often not differentiable only with clinical data, making it necessary to perform specific tests for diagnostic confirmation (4).

On the other hand, even when the clinical diagnosis of swallowing disorder is possible, diagnostic investigation may be necessary to assess the intensity or progression over time of the disease’s involvement.

UES: how to evaluate

Some imaging diagnostic tests, such as videofluoroscopy or cross-sectional imaging through CT or MRI, or endoscopes through a functional variation of nasopharyngolaryngoscopy are used in the study of UES, all of which however, have important diagnostic limitations due to subjectivity in the interpretation of the findings (4).

In the same way, conventional manometry, for many reasons proved to be an inadequate diagnostic method to study the functional anomalies of the UES. First, it is based on a water perfused system with a response rate to the pressure variations insufficient to properly analyze striated muscle contraction and leading to a constant dripping of water that stimulates the UES. Second, the elevation of the hypolaryngeal complex during swallowing causes motion artifacts. Last, the UES has a radial and longitudinal asymmetry and only four radial sensors may be inappropriate (5).

All of these disadvantages do in fact compromise the results of conventional manometry, which has led in the past, many authors do not recommend the routine use of this test in UES studies.

This scenario changed with the emergence of HRM, which provides better understanding of anatomophysiology of the pharynx and esophagus, since with this new technology there was an increase in the number of sensors and their approximation in the catheter. In addition, a solid-stated catheter started to be used, avoiding the continuous dripping of water in the pharynx during the test, reducing the disadvantages of conventional manometry (6,7).

Correct HRM anatomofunctional correlations is already well established through imaging or endoscopy methods (5). HRM allows manometric parameters evaluation within four anatomical regions: the velopharynx, mesopharynx, hypopharynx, and UES (Figure 1).

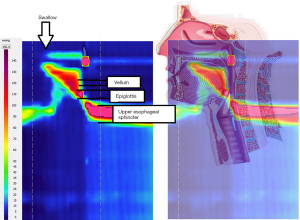

Figure 1 Correlation between HRM plots and anatomic landmarks [adapted with permission from reference (5)]. HRM, high-resolution manometry.

Maximal and minimal pressures as well as the timing and duration of salient pressure events are recorded. UES occlusive pressures are usually pre- or post-deglutitive measured (8,9).

The development of HRM thus allowed the study of UES not only in swallowing disorders (9,10), but also the repercussion in its contractile function, of other esophageal diseases, such as gastroesophageal reflux (11) or achalasia (12). Recently, new and important applications of HRM are also being found in the practice of speech therapy and laryngology (13-17).


Functional study of UES through HRM has allowed not only a better understanding of its functioning under normal and pathological conditions, but also an increased number of situations in which it can be applied. For this reason, new and continuous clinical research is needed, seeking to increase our knowledge of the possibilities of using HRM in the diagnosis of functional changes in the UES.
